3.7V Rechargeable Lithium Ion Battery Pack 7800mAh 8030mAh With PCB
Contact Person : YI QUAN
Phone Number : 13631634942
Whatsapp : +8613662635407
| Minimum Order Quantity : | 10000PCS | Price : | Negotiated The Price |
|---|---|---|---|
| Packaging Details : | Customer Requirements | Delivery Time : | 30-45 work days |
| Payment Terms : | T/T, D/P, D/A, L/C | Supply Ability : | 10000PCS /Day |
| Place of Origin: | CHINA | Brand Name: | FUNPACK |
|---|---|---|---|
| Certification: | CE ROHS PSE UL | Model Number: | L28051 |
|
Detail Information |
|||
| Charge Voltage Type: | 4.4V | Nominal Voltage: | 3.85V |
|---|---|---|---|
| Typical Capacity: | 4860mAh | Cell Weight: | ~65g |
| Cycle Life: | 500 Cycles Capacity Retention ≥80% | Impedance: | ≤ 60mΩ |
| High Light: | 3.85V Polymer Lithium Battery,4860mAh Polymer Lithium Battery,OEM Rechargeable Li Ion Battery |
||
Product Description

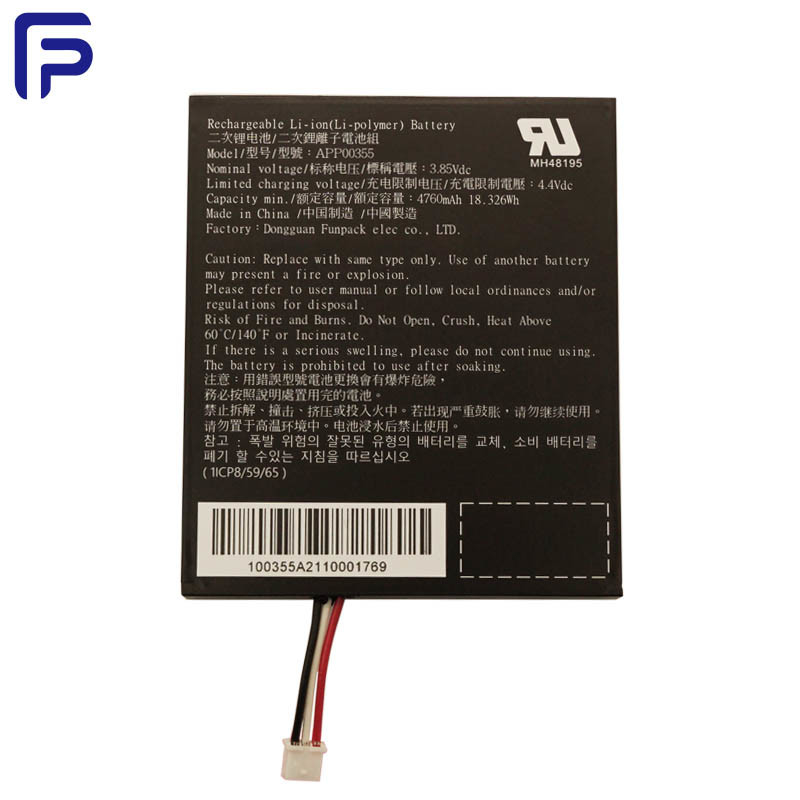

3.85V 4860mAh Polymer Rechargeable Lithium Battery Police Cameras HandheldDevice
Product Description:
Battery pack and Host Device designed with below protection function to make sure that the Cells wouldbe under
safe usage conditions:
Over-charge protection;
Over-discharge protection;
Over current protection;
Over-heat protection;
Short circuit protection.
High Light:
Using polymer batteries, you can customize various sizes and plugs for various security handheld devices
Rechargeable batteries have built-in high quality PCB board,In case of fault happened in Host Device, it shall not
disable the safety features inside the battery pack(s).
The charging system, or any part of the Host Device, shall not disable or override the safety features inside the
battery pack(s).
Warranty period for this product is 12 months, starting from the shipping day of the product from LiFun to another
party.
Product Parameters:
| Item | Specification | ||
| Charge Voltage | 4.4V | ||
| Nominal Voltage | 3.85V | ||
| Minimum Capacity (0.2C) to 3.0V cut off | 4760mAh | ||
| Typical Capacity | 4860mAh | ||
| Standard Charging Method | 0.2C current charge to 4.4V, then CV to 0.02C cutoff at RT. | ||
| Standard Discharging Method | 0.2C current discharge to 3.0V at RT. | ||
| Charging Temperature | Temperature | Charging Current | Voltage |
| 0℃~15℃ | ≤0.2C | 3.0V~4.4V | |
| 15℃~45℃ | ≤2.6A | 3.0V~4.4V | |
| 45℃~60℃ | ≤0.5C | 3.0V~4.1V | |
| Maximum Discharging Current | 3.0A | ||
| Discharging Cut-off Voltage | 3.0V | ||
| Operating Temperature | Charging Temperature : 0°C ~ 60°C | ||
| Discharging Temperature : -20°C ~60°C | |||
| Storage Condition | -20 to 45 °C | Recoverable capacity≥85% within 1 month. | |
| -20 to 35 °C | Recoverable capacity≥85% within 3 months. | ||
| -20 to 25 °C | Recoverable capacity≥85% within 12 months. | ||
| Cell Weight | ~65g | ||
| Environmental Compliance | RoHS | ||
| RT Cycle Life | 500 cycles Capacity retention ≥80% | ||
| Initial Impedance | ≤ 60mΩ | ||
| Cell shipment Voltage | 3.85V ~ 3.95V | ||
| RT storage Capacity retention | 1month | 99.00% | |
| 2month | 98.00% | ||
| 3month | 97.20% | ||
| 6month | 95.70% | ||
Main Functions:
Lithium Polymer batteries make it possible for small objects to achieve intelligence. Bendable Lithium Polymer cells
open up new applications for lithium-ion batteries. For small, thin and flexible devices , Lithium Polymer battery can
provide a certain amount of electric energy to drive their functions of signal transmission or data acquisition. Such as
Police cameras.AndLithium Polymer secondary battery allows
charging and dischargingcycle, broadening the servicing life of electronics products.
Application:
Police Cameras, HandheldDevice,Pos machine,PDA,measuring instrument
